Smart-Wall® Telescopic Prefabricated Stud Framing System

Rondo Smart-Wall® includes the next generation Rondo Smart-Stud® which is a Telescopic Stud, allowing for easy height adjustment and quicker installations.

Rondo Smart-Wall® can be pre-fabricated (Available flat packed in all regions of Australia, and in prefabricated frames in QLD) by Rondo and delivered direct to site to speed up installation and reduce onsite labour costs. Alternatively, it can be flat packed with all components marked out, allowing assembly to take place away from services.

PRODUCT FEATURES

  • Introduction to our Smart-Wall® Telescopic Prefabricated Stud Framing System

    The Rondo Smart-Wall® Telescopic Prefabricated Stud Framing is unlike any other.

    Rondo Smart-Wall® includes the next generation Rondo Smart-Stud® which is a telescopic Stud that can move within a ‘C’ Stud, allowing for easy height adjustment and quicker installations.

    When using the Rondo Smart-Stud feature, the wall framing height can be easily adjusted to accommodate variances in the structure. This removes the need for cutting studs to length and offers a safer site with less wastage.

    Rondo Smart-Wall® can be pre-fabricated by Rondo and delivered direct to site to speed up installation and reduce onsite labour costs. Alternatively, it can be flat packed with all components marked out, allowing assembly to take place away from services.

  • Suitable for
    • Internal Non-Load Bearing Walls
    • Bulkheads
    • Refurbishments
    • Fire rated applications*
    • Seismic Designs available

    *Fire rating of framing to be confirmed by lining board manufacturer.

  • Special Features
    • Reduced on-site wastage
    • Ability to accommodate the variations in the structure,without the need for cutting
    • Minimal site noise pollution due to reduced cutting of steel
    • System flexibility to allow on site adjustments
    • Hot dipped galvanised for superior corrosion resistance
    • Reduced onsite installation time
    • Easy installation
  • Rondo Smart-Stud® Specifications

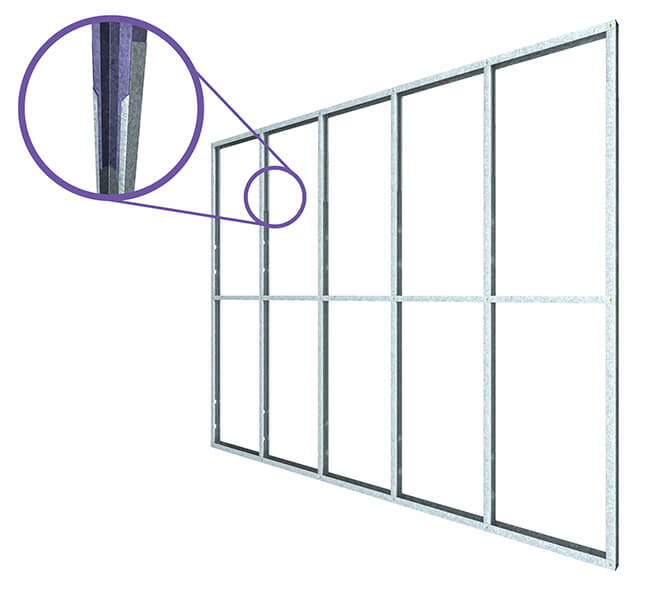

    The Rondo SMART-WALL System comprises two SMART-STUDS - a C stud and an R stud profile.

    The Rondo SMART-STUD C profile is similar to a traditional Rondo steel stud, except that it is proportioned to allow nesting of the Rondo SMART-STUD R profile, in a web-to-web orientation.

    When the SMART-STUDS are nested together, they have the ability to “telescope” up or down to accommodate variations in the structure.

    Where necessary, the “telescopic” feature can be fabricated to allow for wall panel length adjustment as well. Thus, providing adjustment in a horizontal and vertical plane simultaneously.

  • Installation Video

  • Learn more
