What is a Furring Channel and Why is it Important for a Flawless Finish?
Behind every smooth wall finish or perfectly level ceiling lies a precision-built framing system that maintains alignment, strength, and long-term performance.
One often-overlooked component is the furring channel, and in terms of reliability and precision, Rondo furring channels set the industry standard.
What Is a Furring Channel?
A furring channel is a light-gauge metal component used to level uneven surfaces, create cavities for services, and provide a stable fixing point for plasterboard or other lining materials. It essentially forms a subframe that improves both the structural integrity and finish quality of walls and ceilings.
While the concept is simple, the quality of the material and design has a significant impact on the outcome of any project.
What is a Furring Channel Used For? Common Applications and Benefits
Rondo furring channels are used across a wide range of construction project applications, from residential builds to large-scale commercial developments. Their adaptability makes them essential in several key applications:

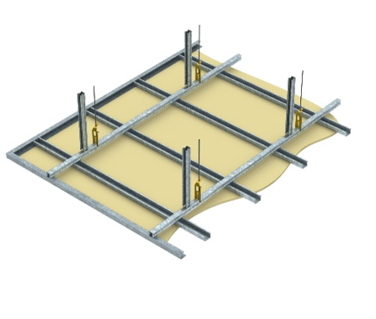

1. Ceiling Systems: Suspended and Direct- Fixed
In suspended and direct-fixed ceiling systems, furring channels provide the framework that supports ceiling linings. Their strength and rigidity help maintain a level ceiling plane, even across wide spans, helping to prevent sagging and cracking of linings.
2. Bulkheads and Features
For Bulkheads and features, the dimensional consistency of Rondo Furring Channels helps to prevent warping and shrinkage, whilst providing a better plasterboard finish quality. This matters greatly for shadow lines, LED lighting, long bulkheads, and square set ceilings.
The Rondo KEY-LOCK® Bulkhead System allows easy, economical and true bulkhead corner finishes to be achieved by using furring channel along with concealed support clips and fixings.
The KEY-LOCK® Bulkhead System offers alternatives for non-fire-rated applications. Bulkhead drops that exceed 1200mm, required an engineered design.

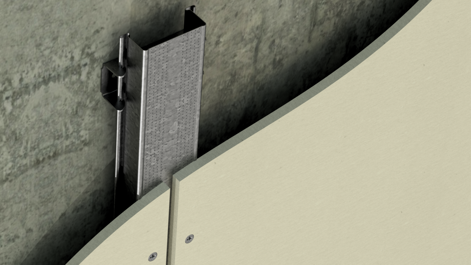

3. Wall Lining Systems
Furring channels are commonly used to straighten and support internal wall linings. Whether installed over masonry, concrete, or steel framing, they create a uniform surface ready for plasterboard installation.

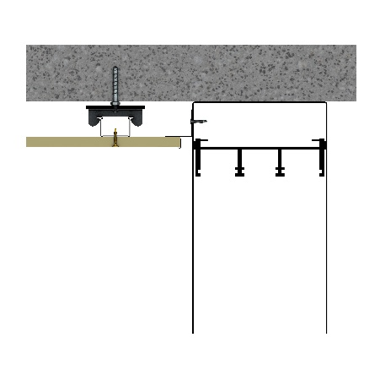

4. Movement Control Between Structural Elements
Furring channels can be installed between concrete columns and Quantro® QU01 clips to allow for controlled building movement. This helps accommodate structural shifts and reduces the risk of noise associated with building movement. For more information on Rondo building movement products and solutions, click here to download the Q1 Quantro® Pro Series.

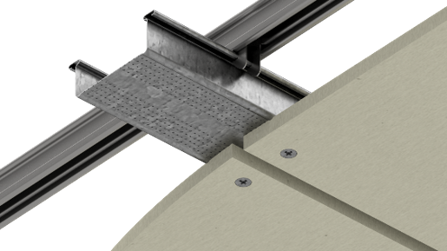

5. Installation of Panels Requiring Fastenings at Greater Distances
The Rondo 605 Extra Wide Furring Channel's unique 64mm width eliminates the requirement for the traditional use of two 155 Furring Channels side by side when creating a greater edge distance to accommodate a larger negative recess.
That means an increased ease of installation and efficiency, using less product. Ideal for panel products such as Knauf’s Stratopanel and CSR’s Troldtekt. For more information on the Rondo 605 Extra Wide Furring Channel, download our tech brief here.

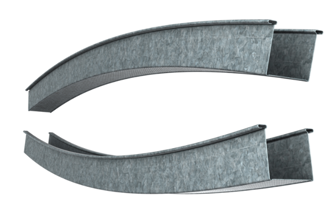

6. Radiused Furring Channels for Curved Design Details
Suitable for complex architectural designs, Rondo offers radiused furring channels which are ideal for curved wall and ceiling applications with plasterboard, including: curved ceilings, barrel vaults, feature bulkheads, waveform designs and curved wall transitions.
Rondo radiused furring channels offer greater design flexibility without requiring custom built framing systems.
What Should you Consider Before Selecting a Furring Channel?
-
Dimensional Accuracy: is each channel is engineered to exact tolerances, ensuring a straight and uniform finish across large surfaces?
-
Corrosion Resistance: Do they have superior protective zinc coatings, built to withstand harsh environments, extending the lifespan of the structure?
-
Structural Reliability: Are they designed to handle load requirements without warping or sagging over time?
-
Compatibility: Do they seamlessly integrate with a wide range of wall and ceiling systems, making a versatile choice for contractors?
Why Choose Rondo?
Rondo has built a reputation in the construction industry for producing high-performance wall and ceiling systems, and its furring channels are no exception.
Manufactured from precision-rolled steel, Rondo Furring Channels are designed to deliver consistency, strength, and ease of installation.
Avoid Costly Mistakes - Why Quality Matters
Choosing a high-quality furring channel is not just about ease of installation—it’s about long-term performance. Inferior products can lead to issues such as uneven finishes, structural movement, and costly repairs.
In Australia and New Zealand compliance requirements for Furring Channels are clear:
Compliant Base Metal Thickness
To comply with AS/NZS 4600, it is required that the uncoated minimum steel thickness at any point in the cold-formed product, as delivered to the job site, be at least 95% of the thickness used in its design.
The recent Rondo investigation into non-compliant imported steel furring channels revealed a concerning issue with some of the tested imported steel products that were marked as 0.50 BMT but the steel studs had actual measurements ranging between 0.46- 0.47 BMT and furring channels 0.45-0.46 BMT—meaning the BMT was 92-94% and 90-92% respectively of the specified thickness.
Compliant Zinc Coating
The Australian Standards for Suspended Ceilings AS2785:2020 recommend in clause F.4 that steel coating protection for all ceilings inside the building envelope that are more than 300m from breaking surf should be a minimum of Z180, and for ceilings outside the building envelope, a minimum steel coating of Z275 should be used in areas more than 1km from salt water.
For further details on Furring Channel compliance requirements and recent alarming test results of imported steel products in the Australian market, click here.
Rondo furring channels mitigate these risks by offering a compliant solution that contractors and builders can trust. Their consistency reduces installation time, minimizes waste, and ensures that the final finish meets professional standards.
The Hidden Framework of Great Design
By choosing a proven system like Rondo, builders invest in precision, durability, and peace of mind. Whether you're constructing a home, an office, or a large commercial space, the foundation of a flawless finish begins with the right framework.
And in that framework, Rondo furring channels continue to set the benchmark.
Availability of the Rondo Furring Channel Range
|
|
129 |
28mm (h) x 38mm (face) Furring Channel
|
|
|
155 |
28mm (h) x 48mm (face) Furring Channel
|
|
|
308 |
16mm (h) x 38mm (face) Furring Channel
|
|
|
308R |
16mm (h) x 38mm (face)Radiused Furring Channel
|
|
|
309A |
22mm (h) x 38mm (face) Dimpled Furring Channel
|
|
|
333 |
13mm (h) x 64mm (w) Recessed Furring Channel
|
|
|
605 |
28mm (h) x 64mm (face) Wide Furring Channel
|
