INSPIRE® Architectural Door Jambs

Elevate your interiors with the new INSPIRE® Door Jamb range, crafted to deliver modern, flush finishes for both residential and commercial spaces.

Designed for non-fire rated internal doors, these jambs are precision-engineered for strength, easy installation, and versatile styling - ensuring a seamless look across a wide range of interior designs.

Paired with complementary End Caps and Reveal Beads, the INSPIRE® Architectural Finishing System provides durable, practical solutions that achieve a consistently refined architectural finish, every time.

PRODUCT FEATURES

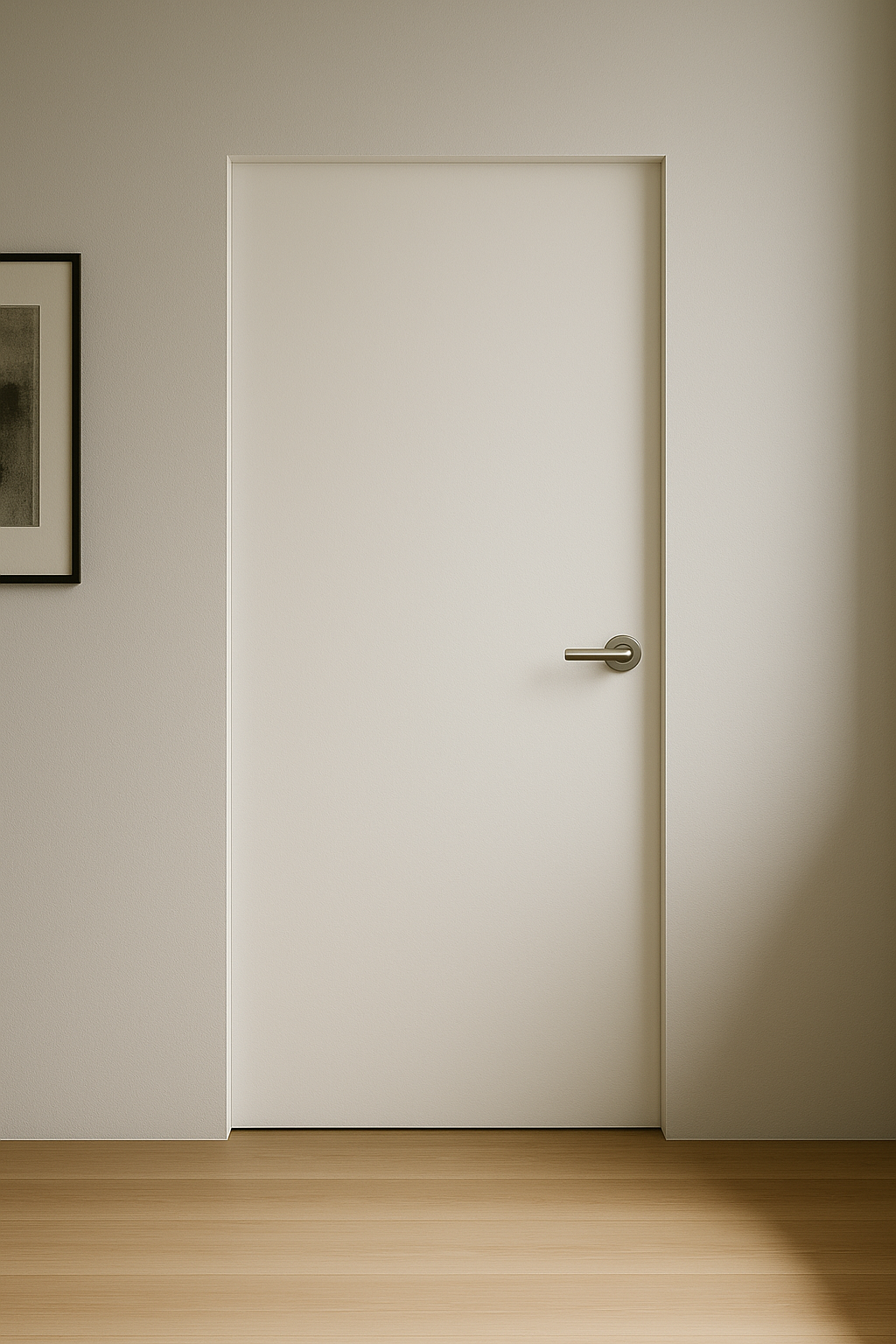

Architectural Finish
Easily set into the surrounding wall lining
Zincanneal Steel
Crafted from 0.90 BMT Steel for durability in high-traffic areas
Various sizes available
Available in a range of different sizes

INTRODUCING OUR NEW INSPIRE® DOOR JAMBS

Sleek Architectural Finish: Flush design integrates seamlessly with wall linings for a clean, contemporary look.

Expertly Engineered: Developed by Rondo’s specialist team to deliver a high-performance, compliant wall and ceiling solution.

Quick & Simple Install: In-built tab design allows fast header-to-jamb connection with fewer parts.

Paint-Ready Surface: Prepped for painting to AS/NZS 2311:2009 finishing surface standards - no extra prep required.

Standard Sizes Available: Single rebate jambs in stock - ready to ship and no delays.

Built to Last: Crafted from 0.90 BMT ZINCANNEAL® Steel for strength and durability in high-traffic areas.

Australian Made: Manufactured locally with premium BlueScope Steel.

Door Jamb Quote Configurator

1

Configure

2

Summary

3

Your Details

4

Confirmation

Choose the necessary parts for your Single Rebate Door Frame by selecting options in the boxes below

Wall Width	Stud (mm)
	Plasterboard (mm)
	Jambset (mm)

Door	Height (mm)
	Width (mm)
	Door Handling (mm)

Hinge Kit

Herline

No items added, please got back to the previous step and add some.

Select a Supplier

Use my current location

Notes for the Supplier

Additional lead times apply to SA, WA, NT and NZ.

Thank you!

We’ve sent your quote to a distributor and will email you a confirmation shortly. For any other questions, please contact Rondo.

CONFIGURE ANOTHER DOOR JAM CONTACT RONDO

Resources

Design Manual
Product Data Sheet
Tech Brief
CAD Files
Order Form

DESIGN MANUAL

INSPIRE® Architectural Door Jambs

Click below for the downloadable and interactive versions:

Pro-Series Interactive PDF

Pro Series I1 - INSPIRE Architectural System Download

PRODUCT DATA SHEET

INSPIRE® Architectural Finishing System

Click below to download our Product Data Sheet:

DOWNLOAD

TECH BRIEF

INSPIRE® Architectural Finishing Systems

Click below to download our Tech Brief:

DOWNLOAD

CAD FILES

INSPIRE® Architectural Door Jambs CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

ORDER FORM

Inspire Door Jambs Order Form

Fill out the order form and send to your trusted Rondo stockist.

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION	SAVE
	DH1S			Inspire^®Door Header - 91mm (w) x 720mm (h) Door Header Number of Products: 1 Length of Product: 725mm
	DH1S			Inspire^®Door Header - 91mm (w) x 820mm (h) Door Header Number of Products: 1 Length of Product: 825mm
	DH1S			Inspire^®Door Header - 91mm (w) x 870mm (h) Door Header Number of Products: 1 Length of Product: 875mm
	I085			Inspire^®End Cap - 85mm for 64mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm Special Order Lengths: 2400mm, 3600mm
	I091			Inspire^®End Cap - 91mm for 64mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I097			Inspire^®End Cap - 97mm for 76mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm Special Order Lengths: 2400mm, 3600mm
	I103			Inspire^®End Cap - 103mm for 76mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I113			Inspire^®End Cap - 113mm for 92mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I119			Inspire^®End Cap - 119mm for 92mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2400mm, 2700mm, 3000mm, 3600mm
	I125			Inspire^®End Cap - 125mm for 92mm Stud with one layer 16mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 3000mm, 3600mm Special Order Lengths: 2400mm, 2700mm
	JL1S			Inspire^®Door Jamb - 91mm (w) x 2040mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2073mm
	JL1S			Inspire^®Door Jamb - 91mm (w) x 2340mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2373mm
	JL2S			Inspire^®Door Jamb - 97mm (w) x 2040mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2073mm
	JL2S			Inspire^®Door Jamb - 97mm (w) x 2340mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2373mm
	JL3S			Inspire^®Door Jamb - 103mm (w) x 2040mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2073mm
	JL3S			Inspire^®Door Jamb - 103mm (w) x 2340mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2373mm
	JL4S			Inspire^®Door Jamb - 113mm (w) x 2040mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2073mm
	JL4S			Inspire^®Door Jamb - 113mm (w) x 2340mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2373mm
	JL5S			Inspire^®Door Jamb - 119mm (w) x 2040mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2073mm
	JL5S			Inspire^®Door Jamb - 119mm (w) x 2340mm (h) Door Jamb Pair Left Side Number of Products: 2 Length of Product: 2373mm
	JR1S			Inspire^®Door Jamb - 91mm (w) x 2040mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2073mm
	JR1S			Inspire^®Door Jamb - 91mm (w) x 2340mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2373mm
	JR2S			Inspire^®Door Jamb - 97mm (w) x 2040mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2073mm
	JR2S			Inspire^®Door Jamb - 97mm (w) x 2340mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2373mm
	JR3S			Inspire^®Door Jamb - 103mm (w) x 2040mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2073mm
	JR3S			Inspire^®Door Jamb - 103mm (w) x 2340mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2373mm
	JR4S			Inspire^®Door Jamb - 113mm (w) x 2040mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2073mm
	JR4S			Inspire^®Door Jamb - 113mm (w) x 2340mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2373mm
	JR5S			Inspire^®Door Jamb - 119mm (w) x 2040mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2073mm
	JR5S			Inspire^®Door Jamb - 119mm (w) x 2340mm (h) Door Jamb Pair Right Side Number of Products: 2 Length of Product: 2373mm
